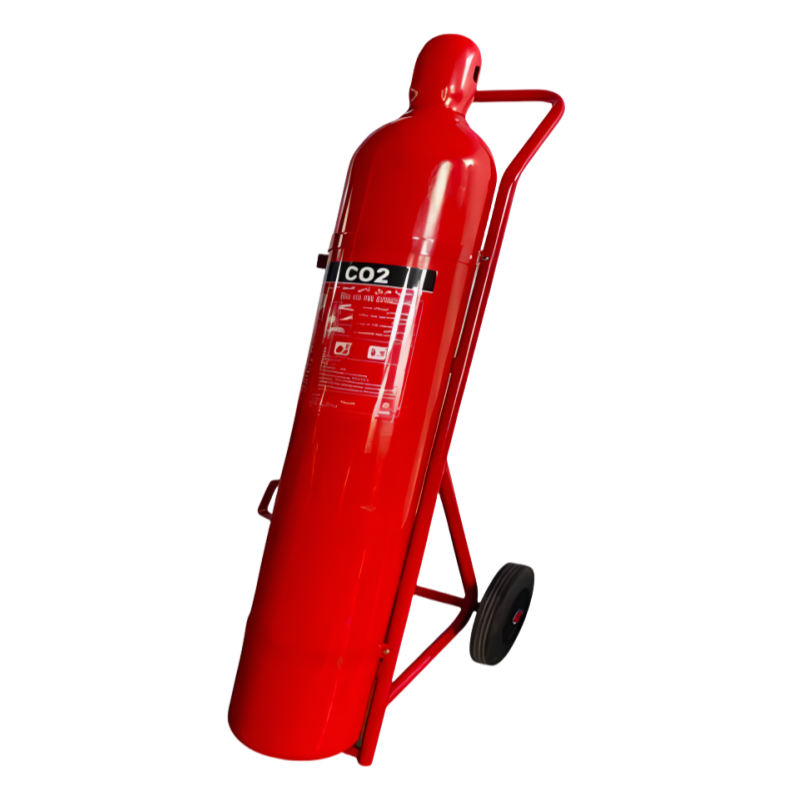

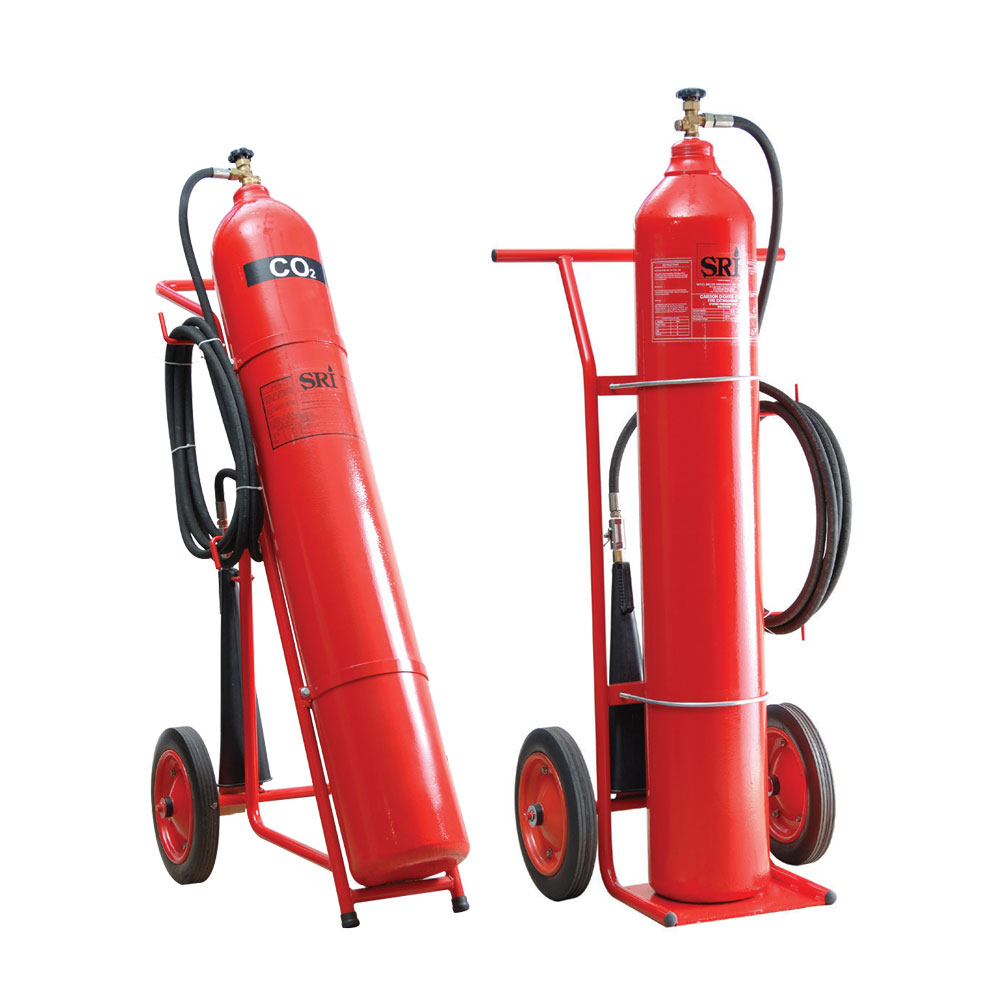

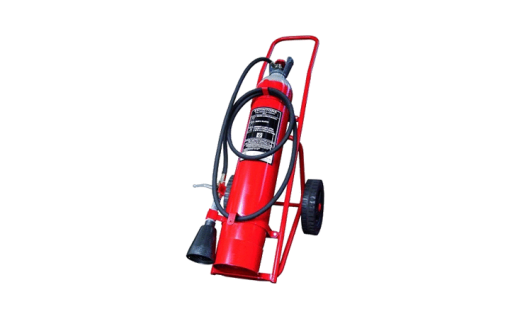

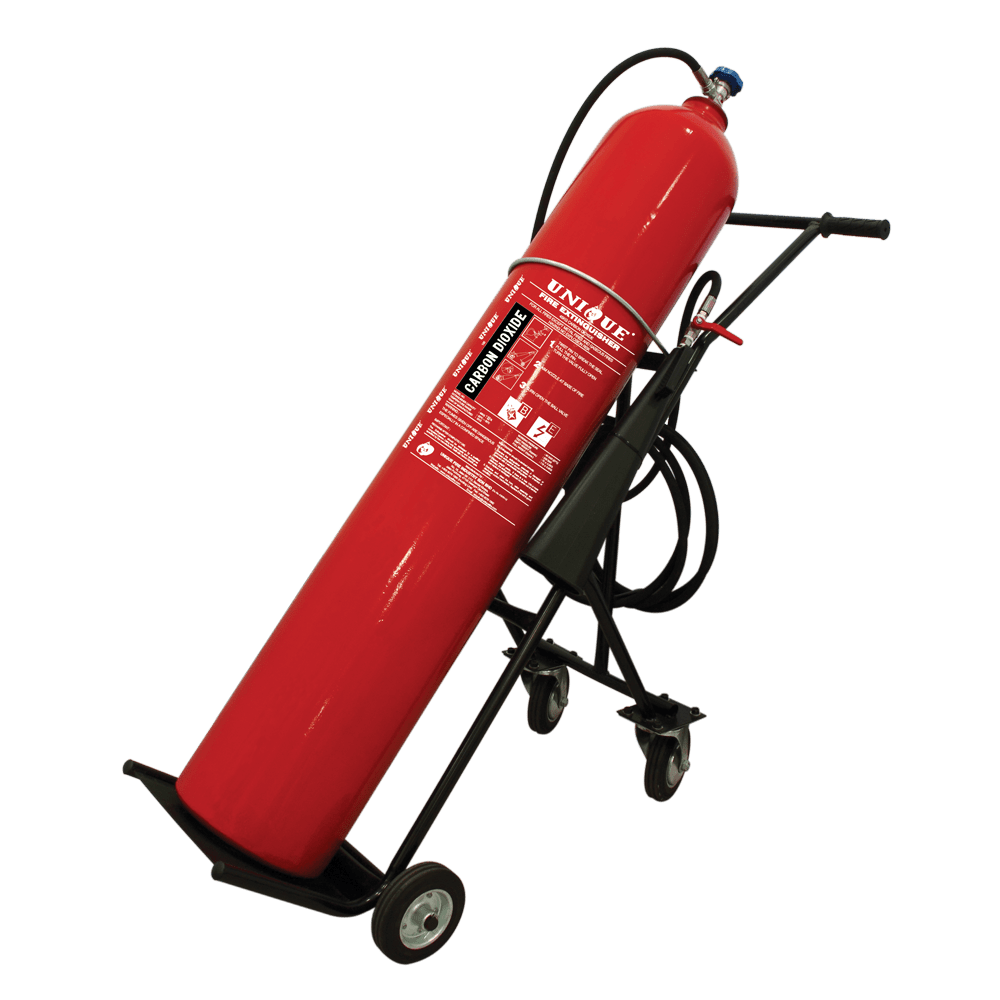

CO2 Fire Extinguisher
Specifications
| Product name | CO2 Fire Extinguisher | ||||
|---|---|---|---|---|---|
| Model | BW33-01 | BW33-02 | BW33-03 | BW33-04 | BW33-05 |
| Capacity | 10kg | 25kg | 30kg | 45kg | 50kg |
| Out-Diamter( mm) | 152 | 219 | 232 | 267 | 219 |
| Cylinder Height(mm) | 1025 | 1330 | 1370 | 1513 | 1330 |
| Volume(L) | 15 | 37.5 | 46 | 70 | 80 |
| GrossWeight(kg) | 30.5 | 92 | 117 | 130 | 207 |
| Cylinder Meterial | CK45 | 37Mn | 37Mn | 37Mn | 37Mn |
| Max Working Pressure(bar) | 174 | 174 | 174 | 174 | 174 |
| Test Pressure(bar) | 250 | 250 | 250 | 250 | 250 |
| Temperature Range | -20℃~+60℃ | ||||
| Fire Rate | 183B | 183B | 233B | 233B | 233B |
| Packing Size(cm) | 30*30*120 | 47*93*150 | 62*50*112 | 156*47 .5*67 | 123*62* 132 |
