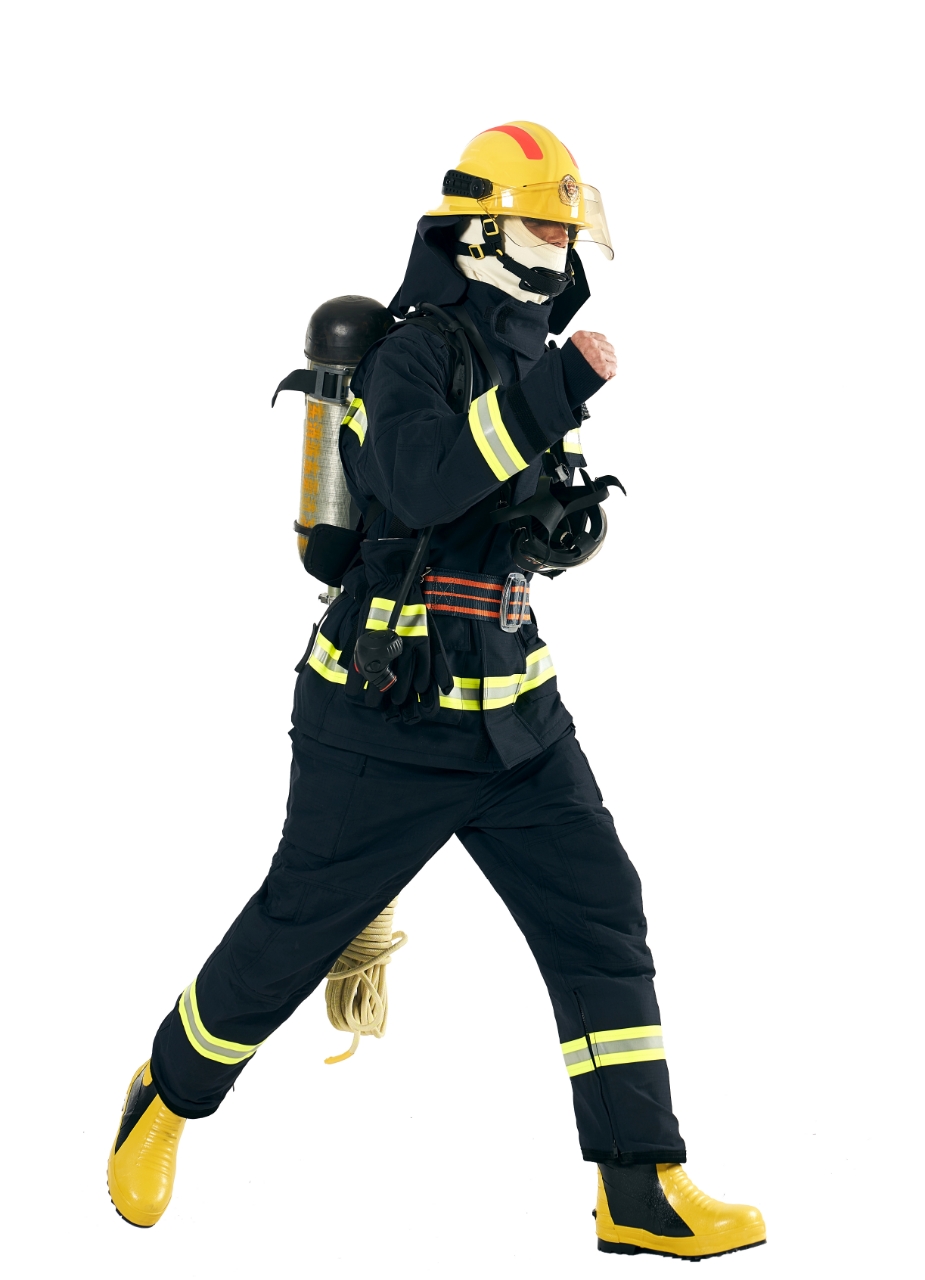

Firefighter Suit ISO9001
Specifications
| Product name | Firefighting suit | |||||||
|---|---|---|---|---|---|---|---|---|
| Size | 175 | 180 | 185 | 185 | 190 | 190 | Extra Large | Error margin |
| Length(Center back) | 77 | 79 | 81 | 81 | 83 | 83 | 83 | ±2 |
| Chest(cm) | 117 | 121 | 125 | 125 | 130 | 130 | 140+10cm | ±2 |
| Sleeve(cm) | 59 | 60.5 | 61.5 | 61.5 | 63.5 | 63.5 | 63.5 | ±2 |
| Pants(cm) | 96 | 99 | 102 | 102 | 105 | 105 | 105 | ±2 |
| Hip(cm) | 116 | 120 | 123.5 | 123.5 | 129 | 129 | 139 | ±2 |
| Waist(cm) | 96 | 99 | 103.5 | 103.5 | 108.5 | 108.5 | 119 | ±2 |
Details
The 2014 and 2017 models of the product both comply with the execution standard XF 10-2014 “Firefighter Protective Clothing for Firefighting”
1. Outer Layer Material
Material: Aramid I type (205±10.25) g/m²
•Flame Resistance:
•Warp direction continuous burning time: 0s, damage length: 42mm
•Weft direction continuous burning time: 0s, damage length: 36mm
•Tensile Strength:
•Warp: 1119N, Weft: 1007N
•Tear Strength:
•Warp: 250.9N, Weft: 230.5N
•Moisture Resistance: Grade 3
•Thermal Dimensional Stability: Shrinkage rate: 1.0%
•Color Fastness:
•Wash fastness: Grade 4
•Abrasion fastness: Grade 4
⸻
2. Moisture Barrier Layer
Material: SPF70, weight (108±5.4) g/m²
•Hydrostatic Resistance: >50kPa
•Water Vapor Transmission: 5288g/m²·24h
•Oil Repellency: Grade 3
•Thermal Dimensional Stability: Shrinkage rate: 1.0%
⸻
3. Thermal Insulation Layer
Material: Aramid I-70, weight (75±3.75) g/m²
•Flame Resistance:
•Warp continuous burning time: 0s, damage length: 44mm
•Weft continuous burning time: 0s, damage length: 43mm
•Thermal Dimensional Stability: Shrinkage rate: 2.0%
⸻
4. Comfort Layer
Material: Aramid TV120, weight (120±6) g/m²
⸻
5. Reflective Markings
•3M reflective tape
•9587/2 inches
⸻
6. Rescue Drag Strap
•Aramid drag strap
•Aramid K-25, size: (25±1) mm
⸻
Overall Protective Performance
•Thermal protective performance: 35 cal/cm²
•Stitch density: 13 stitches/3cm (visible seam)
•Seam tensile strength:
•Warp: 916.8N
•Weft: 878.1N
•Color difference: Not less than Grade 4
•Total garment weight: 2.48kg
