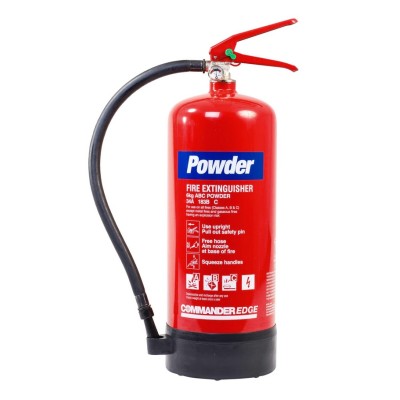

Powder Fire Extinguisher 4-12kg EN3
Specifications
| Product name | DCP dry powder extinguisher 4-12kg | |||||
|---|---|---|---|---|---|---|
| Capacity | 4KG | 6KG | 6KG | 9KG | 9KG | 12KG |
| Model | BW01-08 | BW01-03 | BW01-06 | BW01-04 | BW01-07 | BW01-012 |
| Out-diameter | 130mm | 160mm | 160mm | 180mm | 180mm | 183mm |
| Volume | 5.1L | 7.8L | 7.8L | 11.5L | 11.5L | 13.4L |
| Cylinder length | 435±5mm | 445±5mm | 445±5mm | 510±5mm | 510±5mm | 560±5mm |
| Extinguisher weight | 6.8KG | 9.5KG | 9.5KG | 13.7KG | 13.7KG | 14.3KG |
| Filling weight | 4±0.08KG | 6±0.12KG | 6±0.12KG | 9±0.18KG | 9±0.18KG | 12±0.24KG |
| Temperature range | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Max working pressure | 18bar | 18bar | 18bar | 18bar | 18bar | 18bar |
| Test pressure | 29bar | 29bar | 29bar | 29bar | 29bar | 29bar |
| Min wall-thickness | 1.30mm | 1.24mm | 1.24mm | 1.30mm | 1.30mm | 1.30mm |
| Material | :SPCC | SPCC | SPCC | SPCC | SPCC | SPCC |
| Fire Rate | 21A 113B C | 27A 144B C | 43A 233B C | 34A 183B C | 55A 233B C | 55A 233B C |
| Packing size | 14.5X14X54 | 17.5X17X55.5 | 17.5X17X55.5 | 19.5X19X62 | 19.5X19X62 | 19.5X19.5X65 |
| Manufacturing standard): | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 | BS EN3-7:2004+A1:2007 |
| Certification | Kitemark EN3 | Kitemark EN3 | Kitemark EN3 | Kitemark EN3 | Kitemark EN3 | Kitemark EN3 |
